Automation / OEM-PLC
Eight OEM-grade PLC platforms for system integrators and machine builders — from the 4-DI compact AL-4 up to the rack-based AL-2000S that scales to 256 channels of each I/O type. All share the same AutoLog® ALProWin programming environment, the same Modbus RTU master/slave communication stack, and the same I/O module ecosystem. Pick a model by your I/O count, environmental envelope and form factor. Made in Finland, verified operating range −30 to +70 °C on every model except the rack-based AL-2000S (0 to +55 °C).
OEM-PLC family
Every AutoLog® OEM-PLC is programmed with the same ALProWin tool (instruction list, ladder, symbolic names, trends, monitoring tables). Modbus RTU master/slave runs on every serial port; remote programming over radio, GSM or RS-485 is standard. I/O modules are shared across the compact platforms (AL-4 / AL-8 / AL-14LP / AL-16 / AL-20AN / AL-32); the AL-2000S has its own rack-based card system.

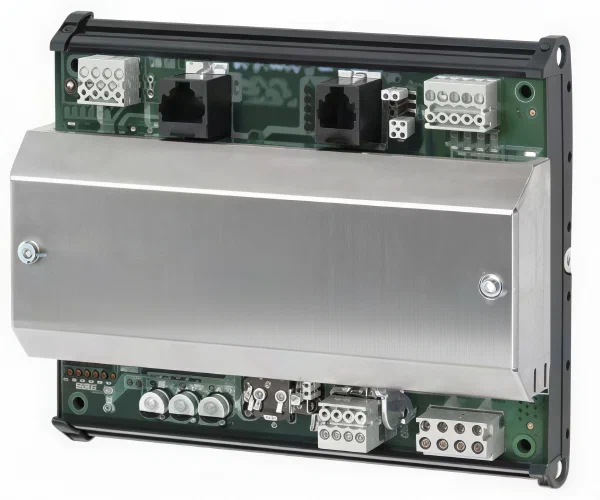

Step up from the AL-4 with on-board analog inputs. Four digital inputs, two digital outputs, two relay outputs and up to two freely-configurable analog input modules. Two serial ports. Available as AL-8 standard or AL-8 w GSM with integrated GSM/GPRS modem. Same 8 000-line, 32-PID ALProWin environment as the rest of the family.

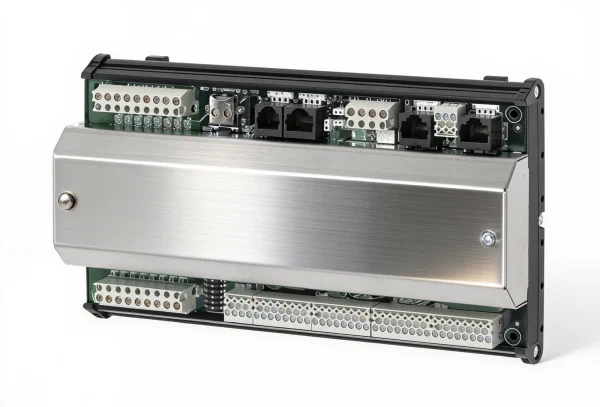

Special-purpose PLC platform tuned for cathodic-protection rectifier monitoring. Five 16-bit analog inputs with CP-specific software-selectable ranges (0-800 mV / 0-3.2 V / 0-50 V / 0-100 V), surge-protected and opto-isolated. Four digital inputs and four digital outputs. Same ALProWin environment; this is the controller inside the AutoLog® Cathodic Protection RTU (WRMU).

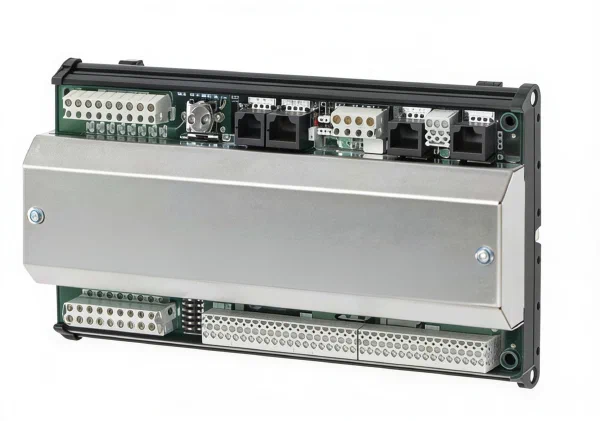

Low-power platform designed for off-grid sites: 12/24 VDC accumulator operation, solar-panel rechargeable. Four configurable power-save modes — Run (5.6–20 mA), Idle (2.2 mA), Stop (1.2 mA), Clock-interruption (140 µA). Eight digital inputs, eight digital outputs plus one PNP sensor-power output, zero-to-four analog inputs. Each interface (AI, I²C, serial) can be individually power-gated.

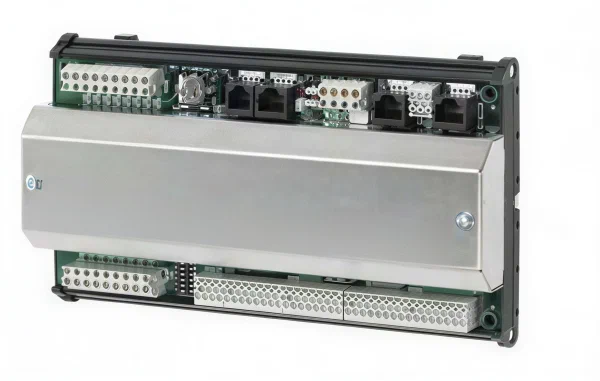

The flagship modular AutoLog® PLC platform. Eight digital inputs (max 72), eight digital outputs (max 72), zero-to-eight analog inputs (max 72) and two analog outputs (max 34) on the CPU card. Expandable via up to five I/O cards (RIO8, RO16, DI16, DO32, EXA 8/4) reaching 64 relay outputs as well. Two serial ports, two I²C ports. This is the controller inside the AutoLog® 20AN RTU and the Redundant Wellhead RTU.
Specify an OEM-PLC for your machine
Tell us about the machine or installation — I/O count, environmental envelope, power source (mains or battery), HMI requirements, communication network. We'll recommend the right platform, the expansion cards you need, and we can supply integrated cabinets if you'd rather receive a turnkey solution. Volume OEM agreements welcome — that has been how we've shipped tens of thousands of AutoLog® controllers since 1976.
